Sublimation Transfer Parameters
Optimize your production with precise temperature, timing, and pressure configurations based on original manufacturing standards from image_af6781.png.
Total Materials
12
Standard Temp
180°C / 356°F
No matching materials found
Try resetting your search query or choosing another category block.
| Material / Print Method | Heat Press Type | Temperature | Required Duration |
|---|
Professional Sublimation Guidelines & Best Practices
Mirror vs. Straight Printing
Mirror printing flips the image before pressing so it transfers correctly onto mugs, tiles, and plates. Straight printing is used primarily for glass/crystal back-transfers or clear substrates read from the opposite side.
Substrate Preparation
Ensure all ceramic and metal surfaces are wiped clean of dust, fingerprints, and moisture before applying heat. Humidity can warp colors or cause steam-spotting.
Pressure Adjustments
High pressure ensures crisp transfers on t-shirts and fabrics. Moderate pressure prevents cracking on fragile items like glass plates, tiles, and crystalline awards.
Please contact your substrate supplier for additional information.
Print Right
No.382, Galle Road, Colombo -06. | Tel: 011 4 38 6668 | Hotline : 0777 628 679

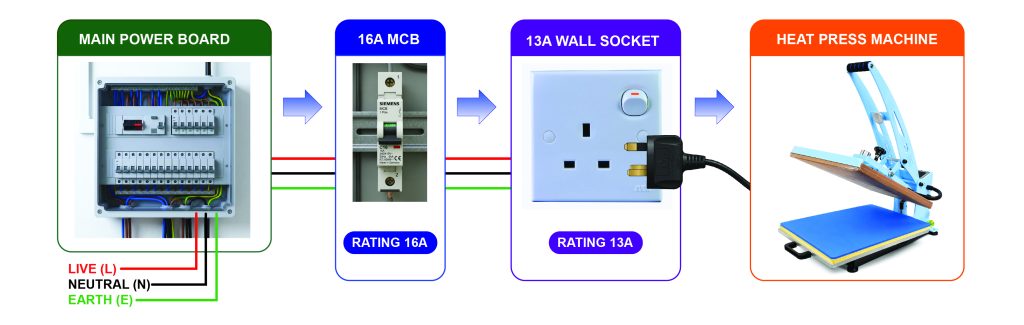

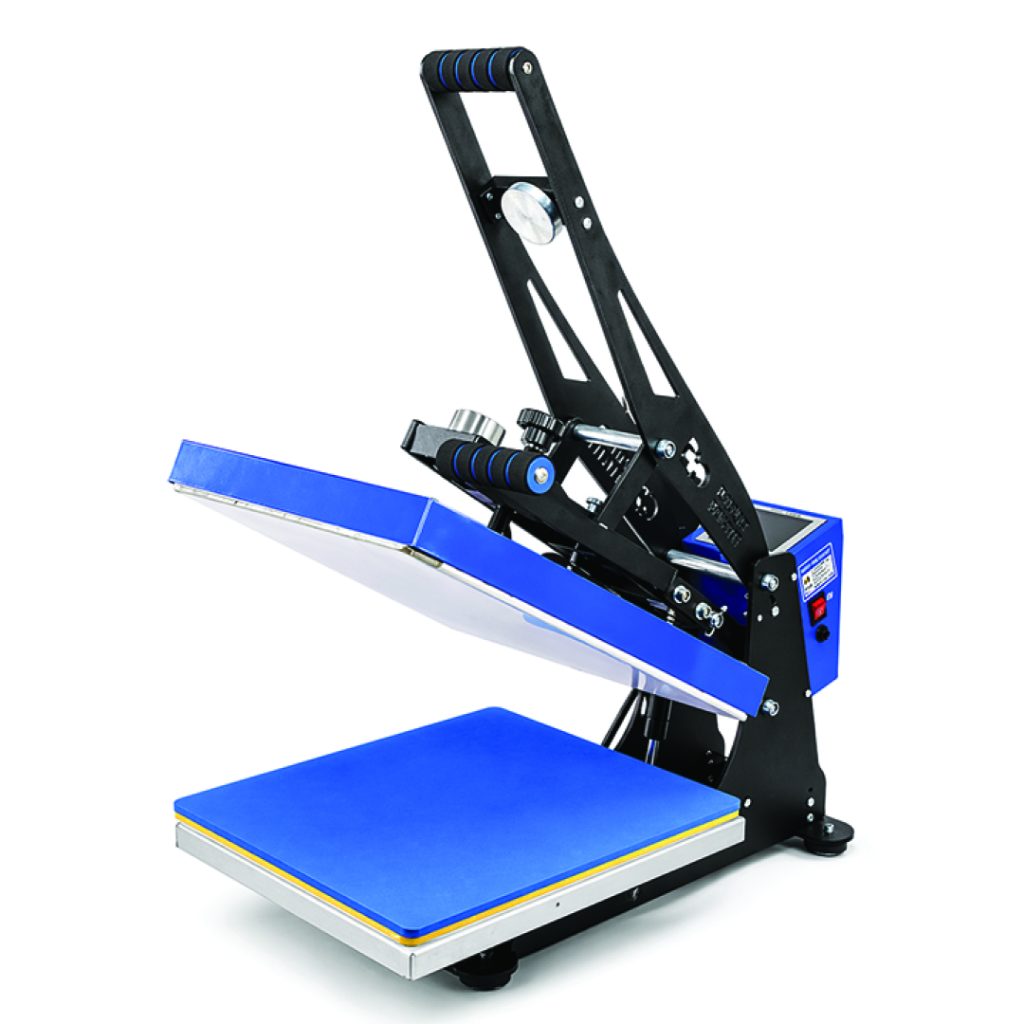

Heat Press Machine - Simple Power Connection

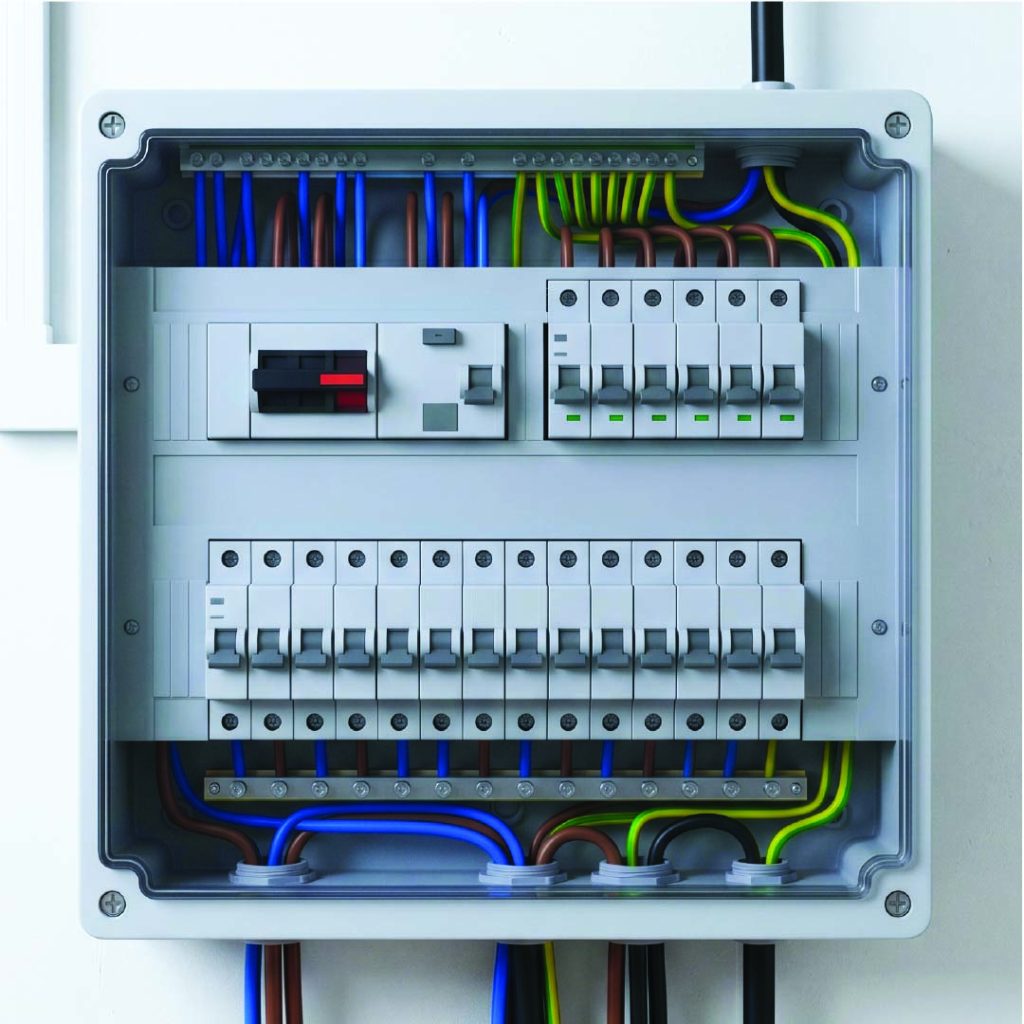

Main Power Board → 16A MCB → 13A Wall Socket → Heat Press Machine
Wire Thickness Guide (Copper Wire)
| Connection | Wire Size | Remarks |
|---|---|---|
| Main Board to MCB | 2.5mm | For Safe & Reliable Power |
| MCB to Wall Socket | 2.5mm | Recommended |
| Wall Socket to Machine | 2.5mm (Flexible) | Use Good Quality 3 Core Cable |
| Earth (E) | 2.5mm | Mandatory for Safety |
Key Points

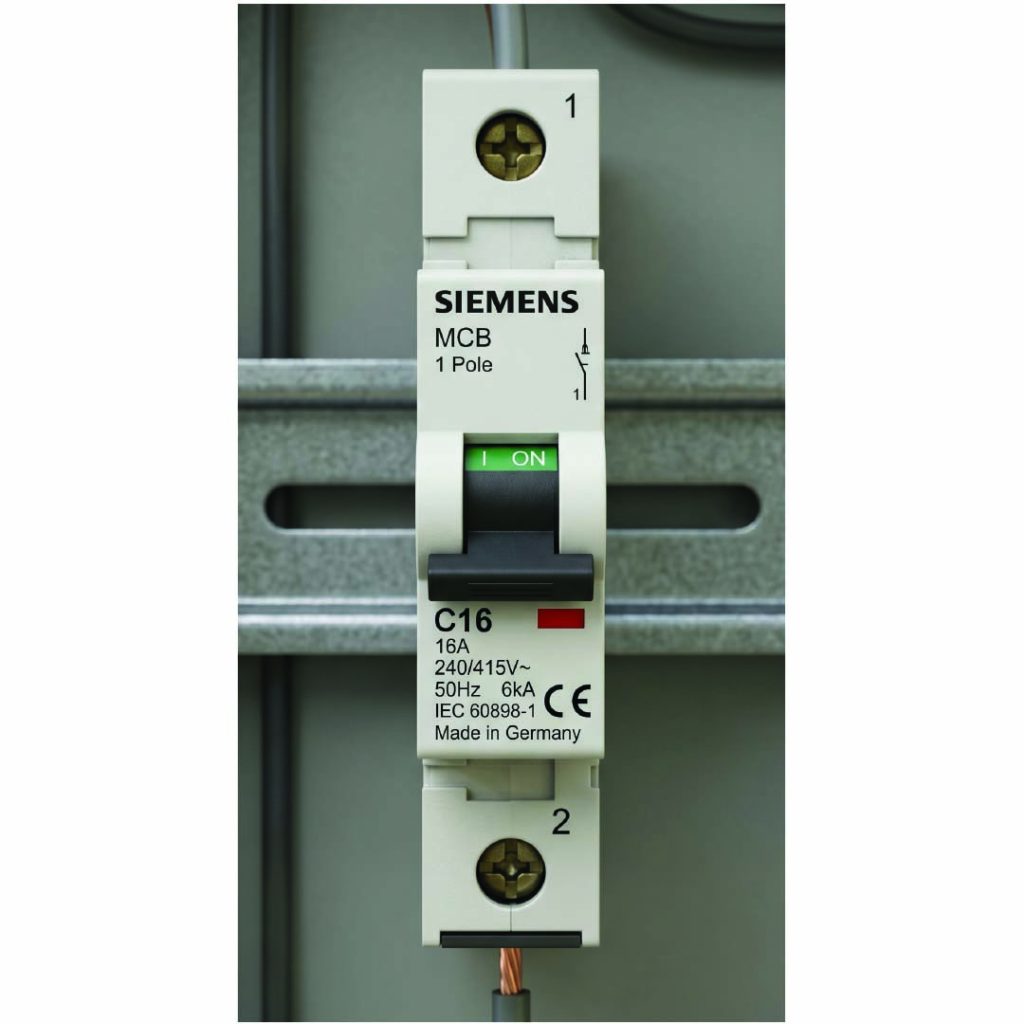

- ✅ Always use 16A MCB for protection against overload & short circuit

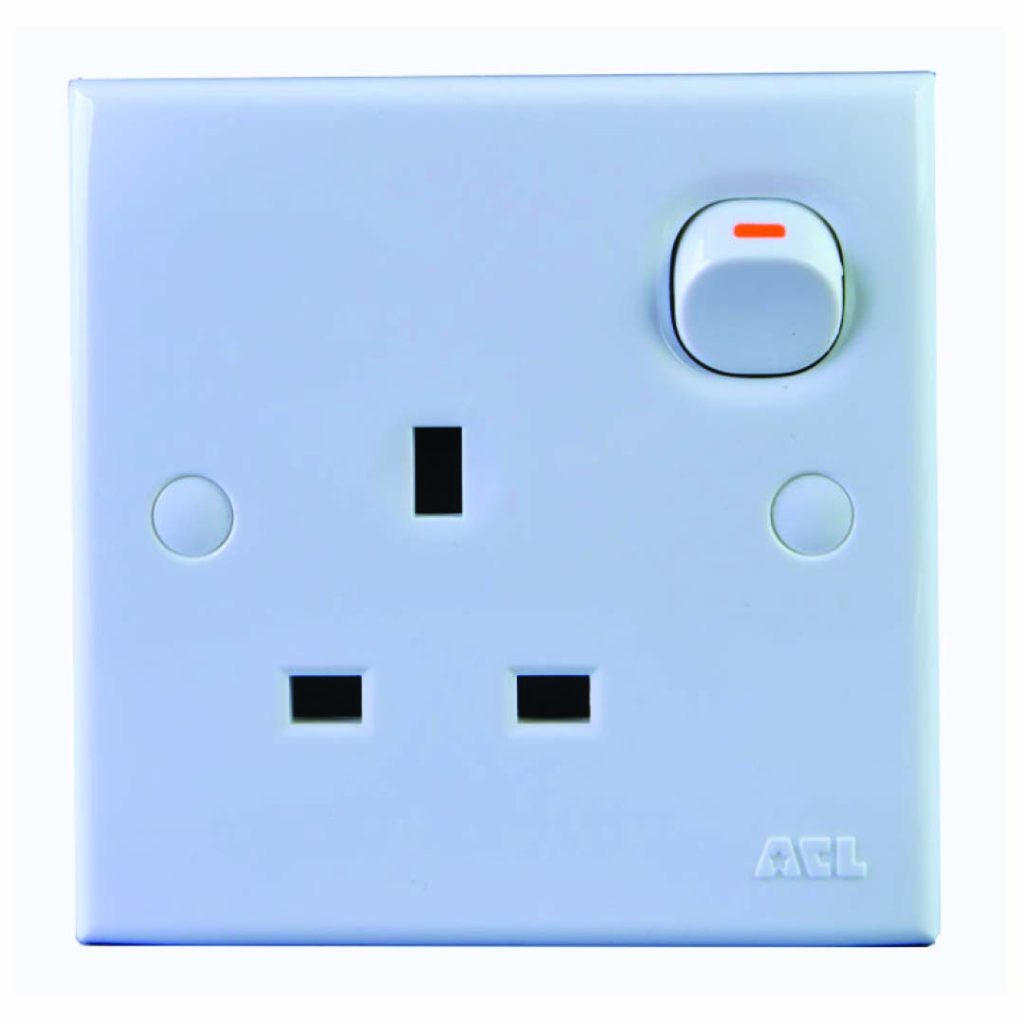

- ✅ Use 13A wall socket for safe and stable connection
- ✅ Proper earthing is mandatory for user safety
- ✅ Use recommended wire size (2.5 mm copper wire)
⚠️ SAFETY FIRST
- ✅ Switch OFF the power before any connection or maintenance.
- ✅ Ensure all connections are tight and insulated properly.
SAFE CONNECTION. PERFECT PRINTS!
