Description

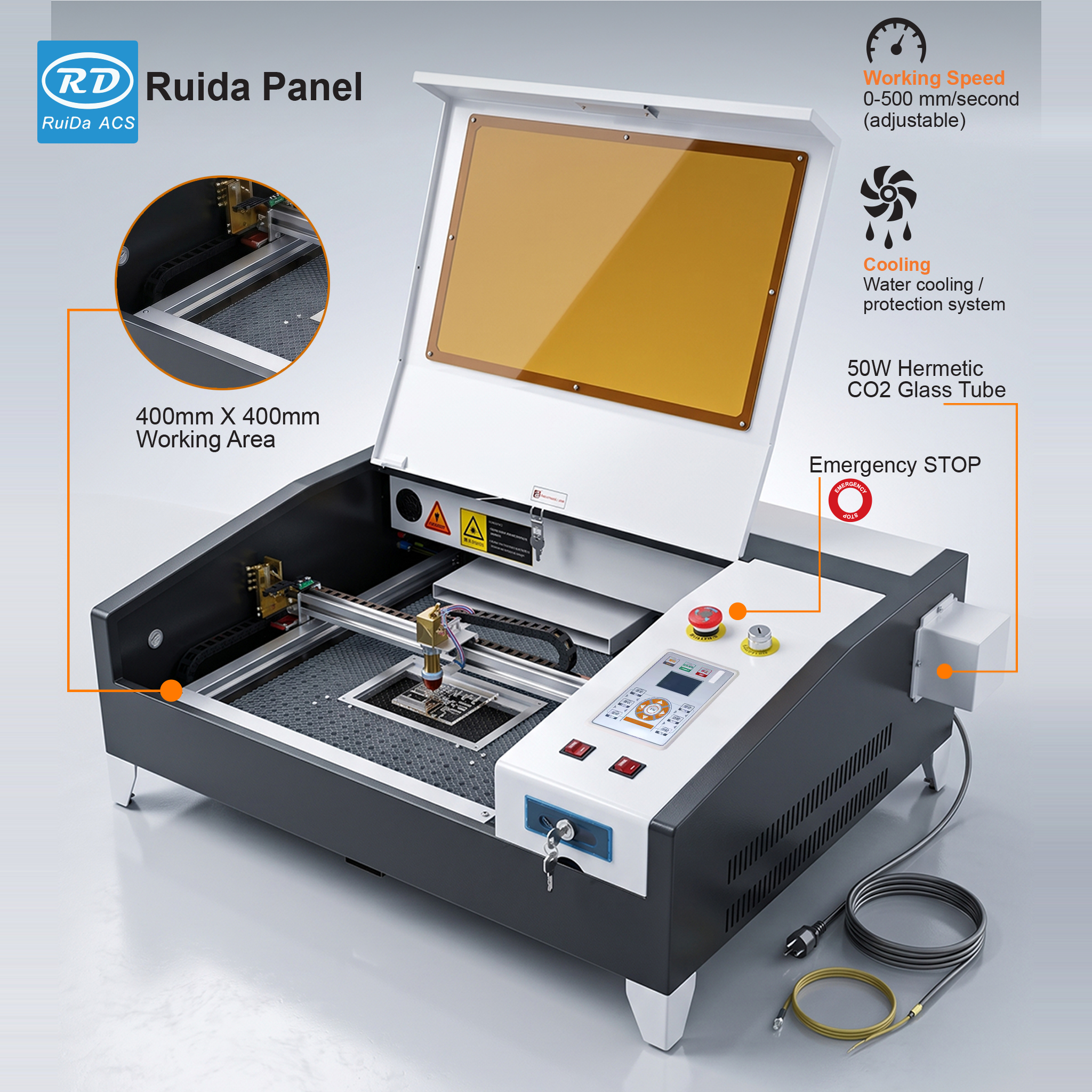

Product Overview
| Feature | Details |
|---|---|
| Machine Type | CO2 Laser Engraver & Cutter |
| Laser Power | 50W |
| Working Area | 400 × 400 mm |
| Laser Tube | Hermetic CO2 Glass Tube |
| Controller | Ruida RDC6445G DSP |
| Cooling | Water Cooling System |
| Speed | 0 – 500 mm/s |
| Safety | Emergency Stop Button |
| Application | Engraving & Cutting |
Key Features
✅ 50W CO2 Laser Tube
The machine uses a:
- 50W Hermetic CO2 Glass Tube
Good for:
- Precision engraving
- Medium-duty cutting
- Small business production
✅ 400 × 400 mm Working Area
Suitable for:
- Acrylic signs
- Gift items
- Rubber stamps
- Leather products
- MDF crafts
- Small custom jobs
Compact enough for workshops with limited space. Humans eventually discovered every room becomes a workshop if enough machines are squeezed into it.
✅ Ruida DSP Control Panel
Professional-grade digital controller:
- Offline operation
- USB file support
- Layer control
- Speed & power adjustment
- Better motion accuracy
- Works with Light Burn & RD Works software
✅ Adjustable Speed
Speed Range:
0 – 500 mm/sec
Allows:
- High-speed engraving
- Fine detail control
- Cleaner cuts
✅ Water Cooling System
Includes:
- Water cooling/protection setup
Purpose:
- Maintains laser tube temperature
- Protects tube from overheating
- Extends tube lifespan
Because lasers are surprisingly dramatic about temperature stability.
✅ Emergency Stop Button
Built-in safety feature for:
- Instant shutdown
- Operator protection
- Fire prevention during faults
Supported Materials
Engraving Materials
✅ Wood
✅ MDF
✅ Acrylic
✅ Leather
✅ Rubber
✅ Bamboo
✅ Paper
✅ Cardboard
✅ Fabric
✅ Glass
✅ Ceramic (coated)
✅ Anodized aluminum (marking only)
Cutting Materials
✅ Acrylic sheets
✅ MDF boards
✅ Plywood
✅ Leather
✅ Paper/card
✅ Foam sheets
✅ Fabric/textiles
Materials NOT Safe for CO2 Laser
❌ PVC
❌ Vinyl
❌ Chlorinated plastics
These release toxic chlorine gas that:
- Damages optics
- Corrodes metal parts
- Endangers health
Science remains committed to attaching horrifying side effects to cheap materials.
Technical Specifications
| Specification | Value |
|---|---|
| Laser Type | CO2 Glass Tube |
| Laser Power | 50W |
| Working Size | 400 × 400 mm |
| Max Speed | 500 mm/s |
| Cooling Method | Water Cooling |
| Controller | Ruida DSP |
| Power Supply | AC 220V |
| Interface | USB / Ethernet |
| Software Support | RDWorks, LightBurn |
| Positioning | Red Dot Pointer (likely) |
| Focus Type | Manual Focus |
| Exhaust System | External Exhaust Port |
Estimated Cutting Capacity
| Material | Approx. Thickness |
|---|---|
| Acrylic | 5-8 mm |
| MDF | 3-5 mm |
| Plywood | 3-5 mm |
| Leather | Easy cutting |
| Paper/Card | Very fast |
Actual performance depends on:
- Lens quality
- Air assist
- Speed settings
- Material density
- Tube health
Common Applications
Business Uses
✅ Name boards
✅ Acrylic signage
✅ Customized gifts
✅ Wedding invitations
✅ Rubber stamps
✅ Leather branding
✅ MDF decorative art
✅ Packaging prototypes
✅ School projects
✅ Photo engraving
Included Components (Likely Standard Package)
✅ Laser machine
✅ 50W CO2 tube
✅ Ruida controller
✅ Power supply
✅ Water pump connection
✅ Exhaust blower port
✅ Work bed/honeycomb table
✅ USB cable
✅ Air assist setup
Software Compatibility
Usually compatible with:
- LightBurn
- RDWorks
Supports:
- AI
- DXF
- BMP
- JPG
- PNG
- PLT
Advantages of This Machine
✅ Compact size
✅ Low power consumption
✅ Precise engraving
✅ Affordable maintenance
✅ Good beginner business machine
✅ Professional controller system
Ideal Users
Best For:
- Startup laser businesses
- Gift shops
- Acrylic fabricators
- Sign makers
- School/workshop labs
- Small production units
Not Ideal For:
❌ Thick metal cutting
❌ Industrial steel fabrication
❌ Heavy production factories
